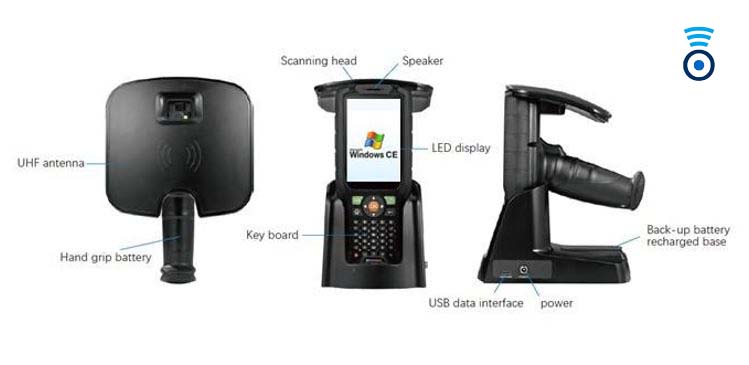

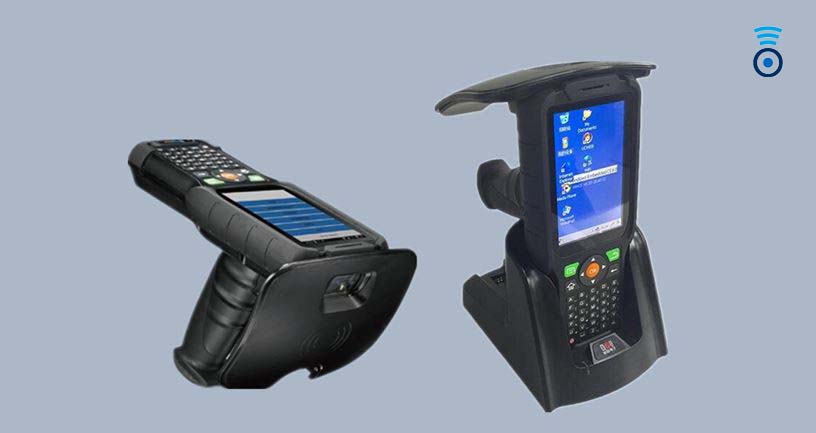

WinCE UHF RFID Handheld Terminal
Features
- Windows Embedded CE 6.0 OS.
- Impinj Indy R2000 chipset brings max RFID performance.
- Overmolding housing, IP65 applies to industrial scenarios.
- Humanist design with hand grip ergonomic for long time use.
- Various communication transfer method options match various applications.
- Widely used in ITS / ETC, execution inspection, warehousing & logistic, smart retail.
Specifications
Performance Characteristics
| CPU | TI AM3715 1GHz |
| Operating System | Microsoft Windows Embedded CE 6.0, NetCF 3.5 |
| Memory | 512MB RAM / 512MB ROM |
| Display | 4.0”TFT LCD WVGA 480×800Pixel |
| Standard I/O Port | USB 2.0 & UART via Cradle |
| Expansion Slot | 1 Micro SD Slot, 1 SIM Slot, 1 PSAM Slot (Optional) |
| Notification | Indicator LED, Speaker |
Network Characteristics
| WIFI | IEEE 802.11 b/g/n Compliant |
| 3G | GSM / WCDMA (UMTS2100/900 MHz GSM850/900/1800/1900 MHz) |
| GPS | GPS with internal Antenna |
| Bluetooth | IEEE 802.15.1/2.1 + EDR |
UHF RFID
| Air Protocols | ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2 |
| Reading Distance | 0-8m(According to Tag & Environment) |
| Antenna | Circular 4dBi |
| RF output | 0-30dBm |
|
Frequency |
|
| IND/EU 865-868 MHZ | |
|
Match reading / data filter Temperature & humidity sensor data acquisition customizable |
Physical Characteristics
| Dimensions (L x W x H) |
Full set: 220mm*130mm*165mm Main body :190mm*84mm*42mm |
| Weight | About 0.7Kg (PDA only) |
| Keyboard |
Full keyboard: 0-9 numeric input and a – z, A – Z letter input keys, some shortcut function keys, Power SW key |
| Micro SD card | Maximum support 32G Micro SD card |
| Storage Temp. | -30℃～+80℃ |
| Operating Temp. | -20℃～+55℃ |
| Humidity | 5% RH～95% RH (non-condensing) |
| Drop Spec. | 1.2M Drop to concrete |
| Dust & Water Proof | IP65 |
Date Capture & Data Processing Devices
| Camera | 5MP |
| Barcode Engine | 1D Laser or 2D Imager Barcode Scanner |
Battery Supply
| Main Battery (Replaceable ) | 1* Lithium Polymer 3.7V 4,000mAh (Rechargeable) |
| Built-in Battery | 1* Lithium Polymer 3.7V 3,300mAh (Rechargeable) |
| Power Consumption |
Working power consumption is less than 7W and standby power consumption is less than 0.03W |
Accessories
| Power Adapter | Input AC100V ~ 240V / Output DC 5V 4A |
| Cradle (Optional) |
Cradle, Spare battery charger, Expansion interface, DC 5V adapter for charging seat, USB data cable |
