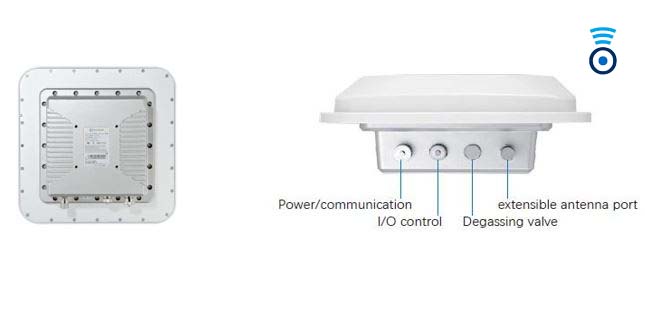

Long Range UHF Rugged RFID Reader
Features
- Powered by Impinj Indy R2000 chipset for maximum tag detection performance.
- Kinds of communication interfaces: RJ45, RS232, RS485, Wiegand.
- Integrated 9dBi antenna, up to 15m detection range, extra antenna port supported.
- Reader cache support break-point resume 10,000pcs tag IDs in offline mode
- Support RSSI, antenna detection, online update.
- RSSI & speed filters.
- IP65 protection rating for reliable deployment in harsh environment.
Specifications
Hardware, OS and Firmware Management
| Processor | ARM9, 400MHz |
| Memory | Flash 128MB; DRAM 32 MB |
| Operating System | Linux 2.6 |
| Firmware Upgrade | Demo software / Telnet |
|
API Support |
Windows – .NET, C++ and Java SDK Android – Java Linux platform – C and Java SDK |
Physical Characteristics

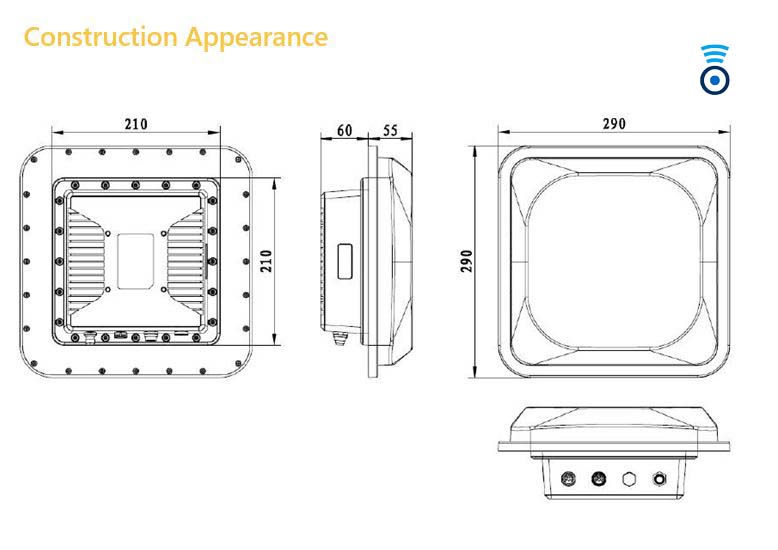

| Dimensions | 290mm(L)×290mm(W)×115mm(H) |
| Weight | 2.5Kgs |
| Housing Material | Aluminum plate, ABS cover |
| Indicators | Power, Status, Antenna port indicator |
RFID Characteristics
| Air Protocols | ISO/IEC18000-6B,6C / EPC C1Gen2, GEN2V2 optional |
| Chipset | Impinj Indy R2000 |
|
Frequency |
|
| IND/EU 865-868 MHZ | |
|
Programing Functions |
Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services |
| Built-in antenna | Circular 9dBi, VSWR ≤ 1.4:1 |
| Output Power | 0dBm-33dBm (±1dBm) adjustable |
| Channel bandwidth | ＜200KHz |
| Reading Distance | 0-15m (According to Tag & Environment) |
| Anti-collision | RSSI / multi-tag / intensive inventory supportable |
| Work Mode | Fixed/hop frequency optional |
Connectivity
| Communications | RJ45, RS-232, RS-485, Wiegand |
| General Purpose I/O |
2 inputs (DC 0~24V), 2 outputs (DC_MAX:30V, 2A;
AC_MAX:125V,0.3A), optically isolated AC_MAX:125V,0.3A), optically isolated |
| Antenna Port |
1 Reverse Polarity TNC port; circular or linear polarization; near and far field compatible |
| Power supply | DC 24V/2.5A (DC 9V ~ 30V,30W) |
Environmental
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity | 5-90% non-condensing (+25℃) |
| Sealing | IP65 |
Make in India product.
