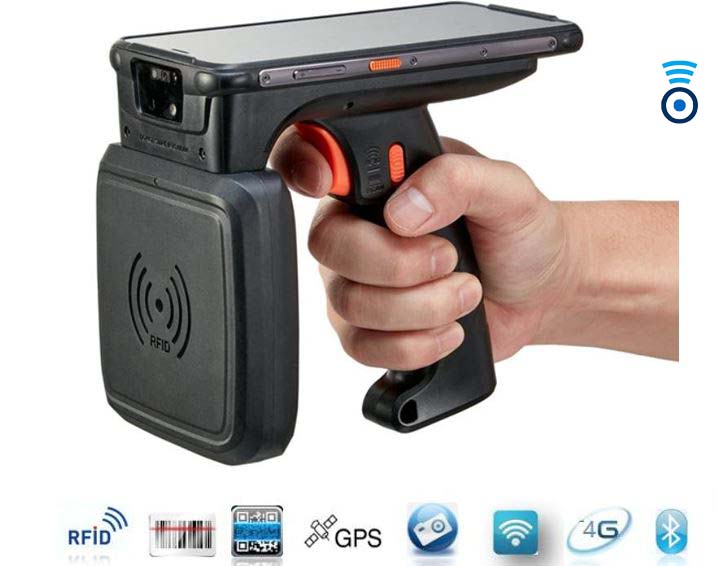

Long Range UHF RFID Handheld Terminal
Features
- Excellent: Impinj R2000 chip with UHF more than 12m reading distance.
- Powerful: Android 8.1 OS, MTK MT6765 Octa-core 2.3GHz.
- Humanist: hand grip ergonomic design, light weight.
- Industrial IP65 rugged, 1.2M Drop to concrete, applying to kinds of severe environment.
Specifications
Performance Characteristics
| CPU | MTK MT6765 Octa-core (4×A53 2.3Ghz, 4×A53 1.8Ghz) |
| Operating System | Android 8.1 (GMS Certified) |
| Memory | 32 GB ROM+4 GB RAM |
| Display | 5.65” FHD+ 1080×2160 |
| Standard I/O Port | USB Type C OTG |
| Expansion Slot | 1 Micro SD Slot, 2 SIM Slots |
| Notification | Indicator LED, Speaker |
Network Characteristics
| WIFI |
802.11a/ac/b/g/n (2.4G+5G) GSM(B2/B3/B5/B8) |
| WWAN(Overseas) |
WCDMA: B1/B2/B5/B6/B8 TDD-LTE: B38/B40/B41(100M) FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26 |
| GPS | GPS + AGPS , with internal Antenna |
| Bluetooth | 5.0 |
UHF RFID
| Protocol | ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2 |
| Reading Distance | 0~ ≥12m(According to Tag & Environment) |
| Antenna | Circular 4dBi |
| RF output |
0-33dBm adjustable USA:902-928MHz (FCC part 15) |
| Frequency | IND/EU 865-868 MHZ |
Physical Characteristics
| Dimensions(L x W x H) | Full set: 164mm(L)×99mm(W)×148.5mm(H) |
| Weight | About 630g |
| Micro SD card | Maximum support 64G Micro SD card |
| Storage Temp. | -40℃～+85℃ |
| Operating Temp. | -20℃～+70℃ |
| Humidity | 5% RH～95%RH (non-condensing) |
| Drop Spec. | 1.2M Drop to concrete |
| Dust & Water Proof | IP65 |
Data Capture & Data Processing Device
| Camera | Rear: 13.0MP(PDAF)+Flash led Front: 5.0MP(FF) |
| Barcode Engine | 2D Imager Barcode Scanner |
Battery Supply
| Main Battery | Lithium Polymer 10,000mAh(Rechargeable) |
Accessories
| Power Adapter | Input AC100V ~ 240V / Output DC 9V 2A |
