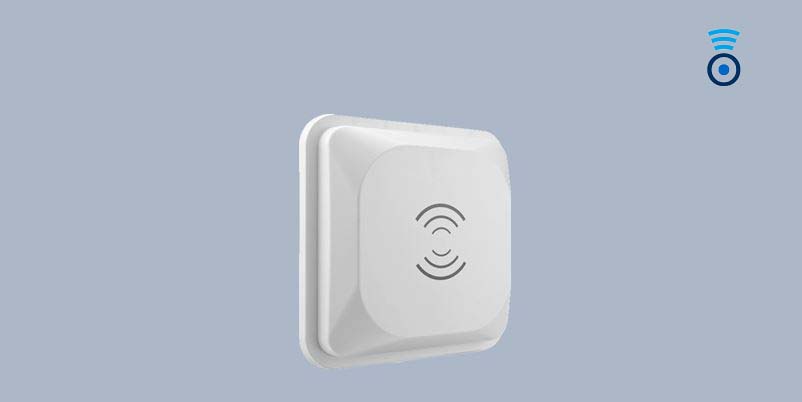

Long Range RFID Fixed UHF Reader
Features
- Powered by Impinj Indy R2000 chipset for maximum tag detection performance
- Aluminum casting / waterproof housing applies to all weather industrial scenarios.
- Various communication / software Interfaces helps faster application system.
- Different developing languages SDK meet different developer needs
- Excellent communication protocol architecture supports faster data processing algorithm.
- Integrated design supports better deploy / installation / engineering / wiring.
- Special application projects customized interfaces / data transferring expandable.
- Seamlessly compatible with RFID middleware for rapid implementation of large projects.
- Widely used in E-parking, garbage truck, feeding vehicle, AGV, access control, etc.
Specifications
Hardware, OS and Firmware Management
| Processor | ARM9, 400MHz |
| Memory | Flash 128MB; DRAM 32 MB |
| Operating System | Linux 2.6 |
| Firmware Upgrade | Demo software / Telnet |
|
API Support |
Windows – .NET, C++ and Java SDK Android – Java Linux platform – C and Java SDK |
Physical Characteristics

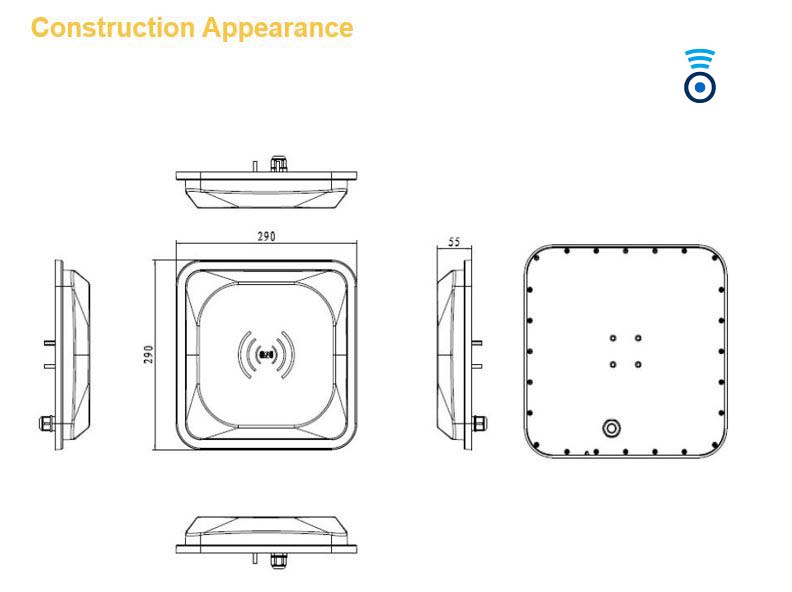

| Dimensions | 290mm×290mm×55mm |
| Weight | 1.6Kgs |
| Housing Material | Aluminum plate / ABS cover |
RFID Characteristics
| Air Protocols | ISO/IEC18000-6B,6C / EPC C1Gen2 |
| Chipset | Impinj Indy R2000 |
|
Frequency |
|
| IND/EU 865-868 MHZ | |
|
|
|
|
Programing Functions |
Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services |
| Built-in antenna | Circular 9dBi, VSWR ≤ 1.2:1 |
| Output Power | 0dBm-30dBm (±1dBm) adjustable |
| Channel bandwidth | ＜200KHz |
| Reading Distance | 0-15m (According to Tag & Environment) |
| Anti-collision | RSSI / multi-tag / intensive inventory supportable |
| Work Mode | Fixed/hop frequency optional |
Connectivity

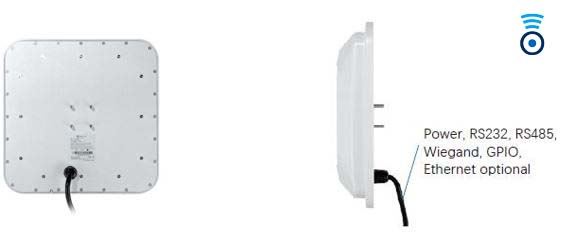

| Communications | RJ45, RS-232, RS-485, Wiegand |
|
General Purpose I/O |
1 optcoupler input, 1 pair 5V output or Wiegand output (Wiegand output is shared with 5V output) |
Environmental
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity | 5-90% non-condensing (+25℃) |
| Sealing | IP65 |
Make in India product.
