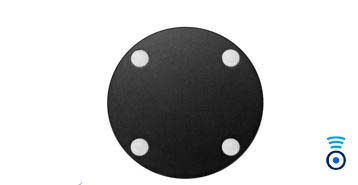

Desktop UHF Reader
Features
- Phychips PR9200 offer lower cost & higher performance
- Delicate and compact design, more friendly with end users
- Compactly Integrated design supports better deploy / installation / engineering / wiring
- Direct useable fast tag writing software greatly improves efficiency
- USB plug & play
- Simply switch between two working modes, USB read/write mode / USB HID keyboard output mode
- Specially designed antenna, realize no signal blind area
- Widely used in working station, date issuing, retail casher, check points, access control, etc.
Specifications
Hardware, OS and Firmware Management
| API Support | Windows platform – .net |
Physical Characteristics
| Dimensions | 90mm (Dia)* 7mm(H) |
| Weight | 0.2Kg |
| Housing Material | Die-cast aluminum / ABS cover |
| Visual Status Indicator | Power, Status |
RFID Characteristics
| Air Protocol | ISO/IEC18000-6C / EPC C1Gen2 |
| Chipset | Phychips PR9200 |
|
Frequency |
|
| IND/EU 865-868 MHZ | |
| Output Power | 20dBm-25dBm (±1dBm) |
| Channel bandwidth | ＜200KHz |
| Reading ＆ Writing Range | Reading Range: 0-10cm Writing Range: 0-5cm (According to Tag & Environment) |
| Working Mode | USB read/write mode, USB HID keyboard output mode |
| Communication | USB |
| Integrated antenna | Circular antenna |
| Power supply | DC 5V/500mA |
Environmental
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity |
5-90% non-condensing (+25℃)
|
